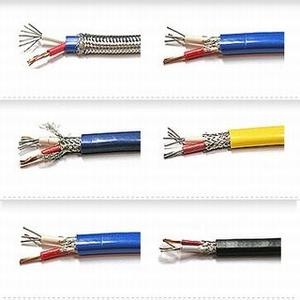

K Type Thermocouple Extension Wire Low Voltage Copper / Tinned Copper Conductor Material

High Quality K Type Thermocouple Wire Compensation Extended Cable

Product Description

Type K(CHROMEL vs ALUMEL) is used in oxidizing, insert or dry reducing atmospheres.Exposure to Vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres.Reliable and accurate at high temperatures.

High Quality K Type Thermocouple Wire Compensation Extended Cable

thermocouple compensation cable
Grade:	Extension Grade or Thermocuple Grade
temperature range, deg. c	-50 to +400
type of coductor:	K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
number of conductors:	1,2,3,4,6
Conductor type	Strand or Solid
material of insulation:	fiberglass, telfon, PTFE, PVC, silicone,so on
material of jacket:	fiberglass, telfon, PTFE, PVC, silicone,so on
shielding material:	Stainless Steel Braid and Tinned Copper wire braid

High Quality K Type Thermocouple Wire Compensation Extended Cable

Thermocouple Extension Wire Compensating Cable
Type of Compensating Conductor	Equipped Thermocouple	Thermocouple Index	Compensating Conductor Allong-wire		Insulation Layer Coloration
			Positive	Negative	Positive	Negative
SC	PtRh10-Platinum thermocouple10	S	SPC Cu	SNC	Red	Green
				Cu Ni
RC	PtRh13-Platinum thermocouple13	R	RPC Cu	RNC Cu Ni	Red	Green
KCA/KCB/KX	Ni Cr- Nisi-loy Thermocouple	K	KPCA Fe/	KNCA Cu Ni/	Red	Blue/
			KPCB Cu/	KNCB Cu Ni/		Blue/
			KPX Ni Cr	KNX Ni Si		Black
NC/NX	Ni Cr- Nisi-loy Thermocouple	N	NPC Fe	NNC Cu Ni	Red	Grey
			NPX	NNX Ni Si		Grey
			Ni Cr Si
EX	Ni Cr- Copper-nickel Thermocouple	E	EPX Ni Cr	ENX Cu Ni	Red	Brown
JX	Fe- Copper-nickel Thermocouple	J	JPX Fe	JNX Cu Ni	Red	Purple
TX	Cu- Copper-nickel	T	TPX Cu	TNX Cu Ni	Red	White
	Thermocouple
