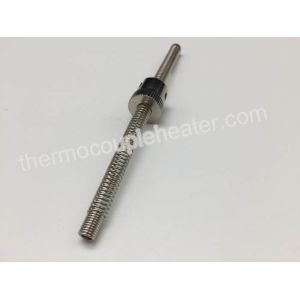

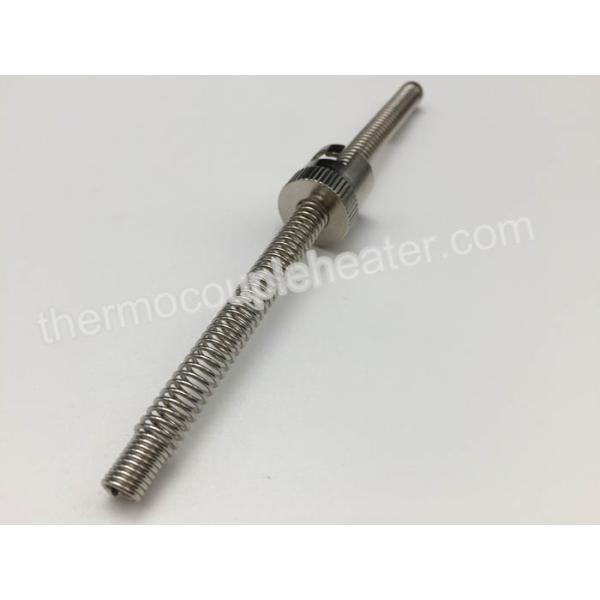

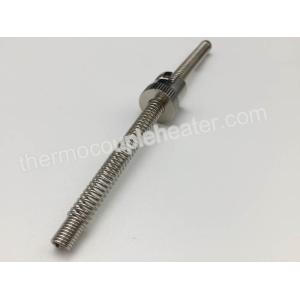

Adjustable Thermocouple Parts And Components Compression Spring Bayonet Cap

1. Bayonet Fittings Brief Introduction

Thermocouple bayonet fittings is a kind of metal accessories for thermocouple,RTD sensor. Various options for different materials, external threads and outer diameters of probe to suit.

Fitting size range from 1/16" thru 2" (2 mm thru 38 mm O.D. tubing) with numerous choices in end
connections and patterns. They are rated to the maximum working pressure of the recommended tubing.

2. Bayonet Fittings Characteristics

• Spring thermal element with good shock-proof performance;
• Wide mesuring range (0~1600 degree Celsius);
• High mechanical strength and good pressure-resistant performance
• Easy assembly and convenient for replacement;

3. Bayonet Fittings Parameter

4 Bayonet Fittings Requirement options:

Tell us following technical data on the bayonet fittings, we will offer you the goods with the best quality and the most competitive price:

• Length of the bayonet cap? From 15mm to 30mm.
• Bayonet cap material?
• Bayonet adaptor material?
• Bayonet adaptor length? From 15mm to 80mm.
• One slot or two slots?
• Dimensions described in the drawing.
• What' s the external thread type for adaptor?
• The information above need to be offered when you order, Better to offer the drawing
• Customized items are open to discuss.
• Bayonet cap is to fit spring or amour?

Wuhan Global Metal Engineering Co., Ltd (GME) specialize in the supply of heating elements and  temperature sensors(thermocouples & RTDs) for a vast array of industries since year 1995.

Our main products include but not limited to Coil heater, Cartridge heater, Flexible Tubular heater, Cast-in Heater, Band heater, Thermocouple, RTD’s, Thermocouple extension wire, Thermocouple connection head , Mineral Insulated thermocouple cables , thermowell, etc.

After 20 years growth, we have more than 200 employees in the factory including 50 sophisticated technicians. Our products have been exported to many countries including North America, South America, Europe, Middle East ,South Asia, etc.

More details, you can also visit our website: http://www.gmemetal.com
