Hot Runner Pressed In Brass Coil Heater 220v 230v 240v With Thermocouple

Ask Lasest Price
Brand Name :	GME
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram, L/C
Supply Ability :	100000 pcs per Month
Delivery Time :	7~10 working days

Add to Cart

Product Details
Company Profile

Hot Runner Pressed In Brass Coil Heater 220v 230v 240v With Thermocouple

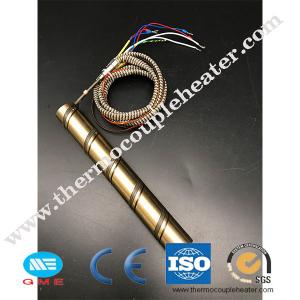

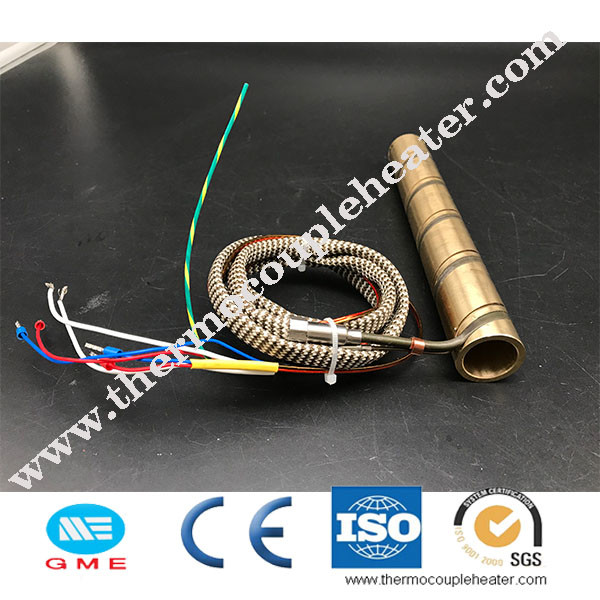

Pressed In Brass Coil Heater With Thermocouple for hot runner system

Description:

The pressed in brass coil heaters (hot runner brass nozzle heaters) we provide deliver the benefits of cast in brass coil heaters and eliminate known problems associated with the casting process. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high pure magnesium oxide, high temperature resistance wire, and world-class manufacturing technology. The basic construction of these heaters consists of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube. With or without built in thermocouples. Widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines.

Specification:

1. Standard sizes available with various cross section
2. Various Watt Density option3.
3. Precision fit on Hot Runner Nozzles
4. Highly Non-corrosive
5. Choice of Terminal Exits
6. Advanced Thermal Engineering
7. Available with built in Thermocouple
8. CE approved

Thermocouple: Integrated type J or type K
Voltage: 220v, 230v, 240v
ID: Φ10mm-Φ42mm
Unheated length:45mm
Max power density: 9W/cm²
Maximum Total Straight Length: 3000mm (118.11”)
Length Tolerance: Heated +/-1%; Unheated +/- 2.5%
Material: 304, 321, 316
Maximum working temperature: 650℃

Application:

Hot runner nozzles & bushings
Injection & blow moulding machine nozzles
Hot runner manifolds
